Applications
Petrochemical - Oil&Gas
Chemistry - Pharma - Polymers
Energy Production - Pulp& Paper

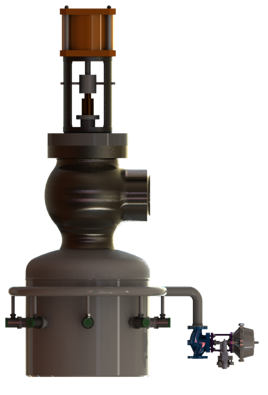

Suitable for intercepting, regulating or diverting the flow of fluids. Particularly suitable for critical applications at high / low temperature, high pressure, in the presence of highly abrasive substances or suspended particles.
These are products that guarantee a perfect metal-to-metal seal and to prevent cavitation through the use of multi-jump trim.
Dimensions :
- body : 3/4"- 24"
- rating : 150#-2500# (more on request)
Construction features:
- DB&B type seal
- plug with double metal seal
- integral plug and stem
- high regulation capacity (rangeability)
- anti-cavitation multistage trim
- Piggable design
Special features :
- zero emissions into the atmosphere (TA-Luft)
- Cage Release type trim for easy maintenance
- perfect hold
- fire safe design
- heating jacket

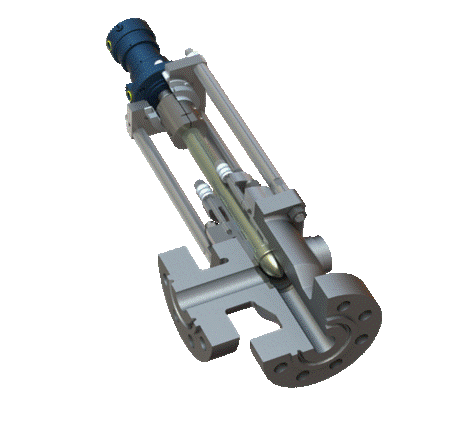

Valves used for processes in the pharmaceutical sector, polymer production, for the production of fine chemicals and for viscous fluids. They can also be used in Food or injection applications, they can be customized in order to best respond to all specific plant applications. Sampling system without product dispersion or cross contamination.
Dimensions :
- body : 3/4"- 24"
- rating : 150#-2500#
Construction features:
- compact valve build
- dead space free
- clean in place
- zero emissions into the atmosphere
- integrated temperature sensor
- internal grinding
Special features :
- fire safe design
- PTFE or glass lining
- flushing
- heating jacket
- tight shut off

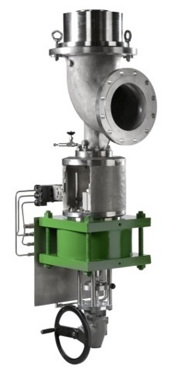

Wide range of valves and steam attemperation systems in various conformations for regulation with specific characteristics studied on the basis of the process control elements such as pressure, temperature, flow regulation. They are also designed for noise control and high resistance to flashing and cavitation prevention.
Dimensions :
- body : 1"- 36"
- rating : 150#-2500# (more on request)
Construction features:
- low Dp body geometry
- customized regulation curve
- low noise trim
- high regulation capacity (rangeability)
- anti-cavitation multistage trim
- multiple nozzle attemperators, with variable or fixed air
Special features :
- cast or forged body
- Cage Release type trim for easy maintenance
- tight shut off
- anti-rotation system
- Venturi type design
